RS330400 acceleration sensor

Your location：> Home> Products> Acceleration> RS330400 acceleration sensor

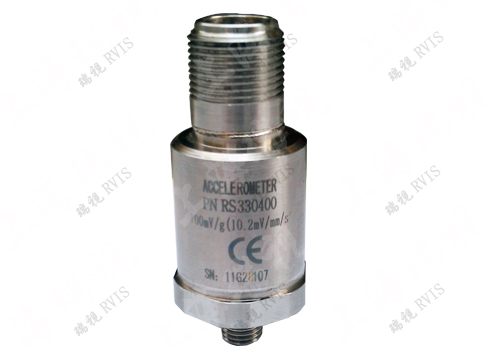

Substitute Bently330400 Acceleration Sensor

Product Details

■ Substitute Bently330400 Acceleration Sensor;

■ Sensitivity: 10.2 mv/m/ s2 (100mv / g) (5% at 100 Hz);

■ Acceleration range: In the frequency band from 1 Hz to 20 kHz, the overall acceleration is 490 m / s2 (50 g) peak.

■ Amplitude linearity: 1% within the peak value of 490 m / s2 (50 g);

■ Frequency response: -3dB(3Hz to 15 kHz); -0.8dB(5Hz to 15 kHz)

■ Working direction: Any angle of 360°

■ Working mode: Three-line work;

■ Working current: 2~10mA

■ Supply voltage: -24±5%VDC;

■ Output resistance: <100Ω;

■ Bias voltage: -8.5VDC;

■ Installation thread: M8X1 integral stud bolt; 1/4-28UNF integral stud;

■ Temperature: -55 ℃～+121℃(-67℉～+250℉);
