RS9200 magnetoelectric speed sensor

Your location：> Home> Products> Vibration speed sensor (piezoelectric speed sensor, magnetoelectric speed sensor)> RS9200 magnetoelectric speed sensor

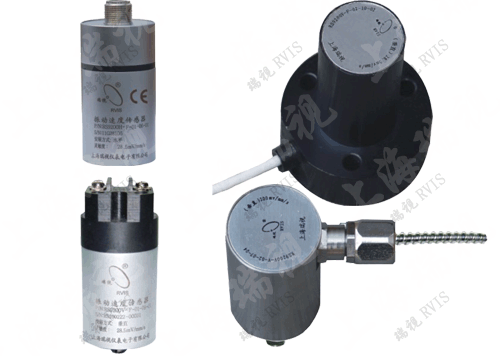

RS9200 magnetoelectric speed sensor

Substitute BN9200 magneto-electric speed sensor, epro PR series magneto-electric speed sensor, ShinkawaCV-85 series magneto-electric speed sensor and Schenck VS068 / 069 magneto-electric speed sensor .

Details

Product Details:

■ Substitute BN9200 magneto-electric speed sensor, epro PR series magneto-electric speed sensor, ShinkawaCV-85 series magneto-electric speed sensor and Schenck VS068 / 069 magneto-electric speed sensor;

■ Frequency response range: 5Hz～1000Hz(-3dB);

■ Sensitivity: Available in 4.0mV / mm / s, 20mV / mm / s, 22mV / mm / s, 28.5mV / mm / s, 30mV / mm / s, 50mV / mm / s and 100mV / mm / s;

■ Working mode: Horizontal installation / vertical installation / general installation is optional;

■RS9200 installation method: Bolt connection with studs (M6×1, M8×1, M8×1.25, M10×1, M10×1.5, 1/4-20UNC, 1/4-28UNF) or fixed with a strong magnet;

■RS9268, 9266 type 3-φ 6.6 mounting holes which are 120 with each other;

■ Output: Terminal leads or aviation connectors.
