RS330500 piezoelectric speed sensor

Your location：> Home> Products> Vibration speed sensor (piezoelectric speed sensor, magnetoelectric speed sensor)> RS330500 piezoelectric speed sensor

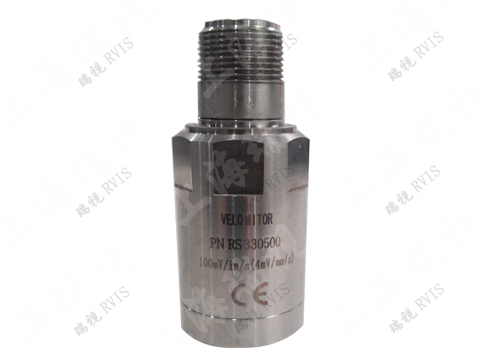

Substitute Bently330500 Piezoelectric Speed Sensor

Product Details：

■ Substitute Bently330500 Piezoelectric Speed Sensor;

■ Sensitivity: 3.94 mv / mm / s (100 mv / in / s) (5% at 100 Hz);

■ Speed range: 1270 mm / s (50 in / s) peak value;

■ linearity of amplitude: 2% within the peak value of 152 mm / s (6 in / s);

■ Frequency response: ±3.0 dB(4.5Hz～5 kHz), ±0.9 dB(6.0Hz～2.5kHz);

■ Working direction: Any angle of 360°

■ Working mode: Two-wire system work;

■ Supply voltage: -24±5%VDC;

■ Output resistance:<100Ω;

■ Bias voltage: -12VDC;

■ Mounting threads: M8×1 integral stud bolt; 1/4-28UNF integral stud bolts are available for selection;

■ Temperature: -55 ℃～+121℃.
