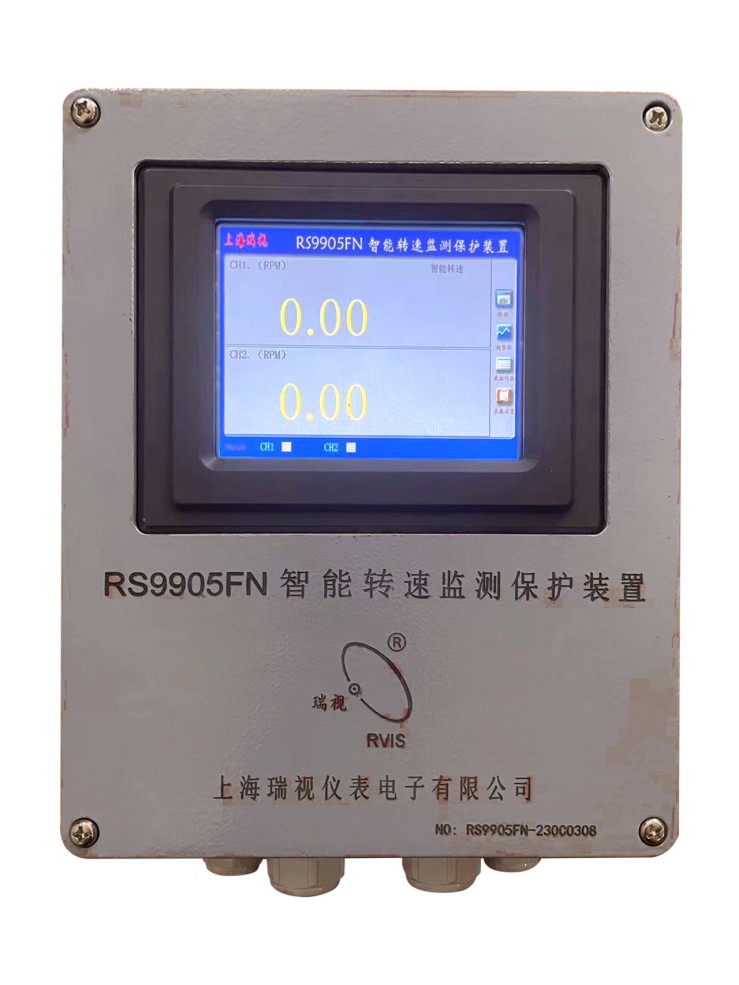

RS9905N Configuration speed monitoring and protection device (RS9001N configuration speed monitoring and protection device) is a high precision, high reliability speed positive and negative rotation protection device (instrument), can measure any speed in the range of 0.2Hz ~ 20KHz, can be equipped with eddy current sensor, passive magnetoelectric sensor, active magnetoelectric sensor. The monitoring protection device (protection instrument) can be configured to set speed measurement range, alarm value, relay (overspeed, reverse) working mode, relay (overspeed, reverse) output logic, etc. Standard analog output (4 ~ 20mA or 1 ~ 5VDC), can be directly connected to PLC, DCS, DAS and other industrial control systems.

Main monitoring function

■ Normal speed monitoring protection

Matching sensor

■ Active magnetoelectric sensor

■ Eddy current sensor

■ Passive magnetoelectric sensor

Technical specification

■ 5.7-inch color display touch screen;

■ The instrument has: bar chart display, trend chart, data list, page query;

■ Touch configuration, USB configuration, network port configuration;

■ Communication mode: RS485;

■ Normal speed monitoring and protection;

■ Configuration function selection: sensor selection, range selection, warning/danger value setting, relay (overspeed) alarm mode/alarm delay;

■ Normal overspeed relay alarm function;

■ The minimum measurement accuracy can reach 0.2Hz;

■ Sensor power supply:

-24V±1V(eddy current sensor power supply limit 30mA, prevent ignition),

+24V±1V(active magnetoelectric sensor power supply);

■ Diagnostic signal :BNC connector or terminal BUF output;

■ Output mode :4~20mA(maximum load 500Ω) or 1~5VDC;

■ Communication configuration between MiniUSB and PC;

■ Host computer real-time status monitoring function, real-time display of data waveform, rod diagram, alarm information;

■ Working voltage :90V~260VAC.
