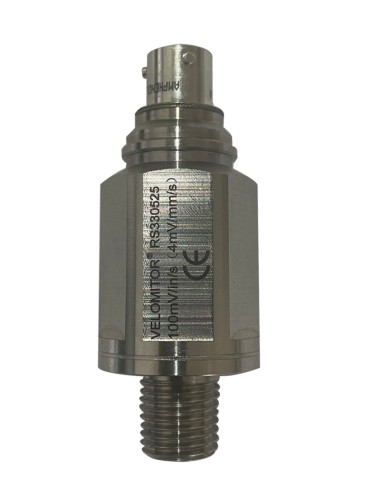

RS330525 piezoelectric speed sensor

Your location：> Home> Products> Vibration speed sensor (piezoelectric speed sensor, magnetoelectric speed sensor)> RS330525 piezoelectric speed sensor

Replacement of Bently330525 piezoelectric speed sensor

■ Replacement of Bently330525 piezoelectric speed sensor;

■ Explosion-proof mark: Ex ia IIC T4 Ga

■ Sensitivity: 3.94mV/mm/s(100 mV/in/s) (±5%, at 100Hz);

■ Speed range: 1270 mm/s (50 in/s) peak;

■ Amplitude linearity: ±2% at 152 mm/s (6 in/s) peak;

■ Frequency response: ±3.0dB(4.5Hz ~ 5kHz), ±0.9dB(6.0Hz ~ 2.5kHz);

■ Working current: 2 ~ 10mA; Joint: 2-pin Mil-C-26482,304 stainless steel housing;

■ Working direction: 360° arbitrary Angle

■ Shell material: 316L stainless steel;

■ Power supply voltage: -24±5%VDC;

■ Output resistance: < 100O;

■ Bias voltage: -12±5%VDC;
